PSL Series 8CH Programmable Source/Load Battery Simulator
+ Standard 19-inch 2U chassis with 8 independent channels
+ Total power up to 480 W (60 W constant powerper channel, 21 V/5 A output)
+ Output setting accuracy up to 1 mV / 1 mA; readback accuracy 0.1 mV / 0.1 μA
+ Combines power supplyand electronic load ; load side includes CP, CC, CV, and CR fixed
+ Standard LAN port, plus Type-C/RS232/RS485optional interface.
+ Each channel has an independent fanwith intelligent temperature-based speed control
+ OVP (22 V) and OCP (5.1 A)
+ 3-inch HD LCD with an independent voltmeterinterface for remote measurement
Eight Independent Outputs in a 2U Chassis
Integrates eight independent channels in a standard 2U chassis, delivering 480 W total power. Each channel provides 60 W, 0 to 21 V, and 0 to 5 A for independently powering multiple DUTs while centrally managing test parameters. Channel count can be customized.

Microamp-Level Readback for Precise Low-Power Evaluation
Provides 1 mV/1 mA setting precision and 0.1 mV/0.1 μA readback precision for evaluating standby power consumption in IoT and wearable devices and identifying abnormal leakage or excessive standby current.

Integrated Source and Load for Simplified Charge/Discharge Testing
Combines power supply output and electronic load capabilities. Load mode supports CP, CC, CV, and CR, reducing external instruments and cabling while simplifying automated test scripting.

Independent Cooling and Channel Protection
Each channel features an independent, temperature-controlled smart fan that adjusts cooling according to temperature. Built-in 22 V overvoltage and 5.1 A overcurrent protection ensure reliable continuous multichannel testing.

Independent Digital Voltmeter (DVM)

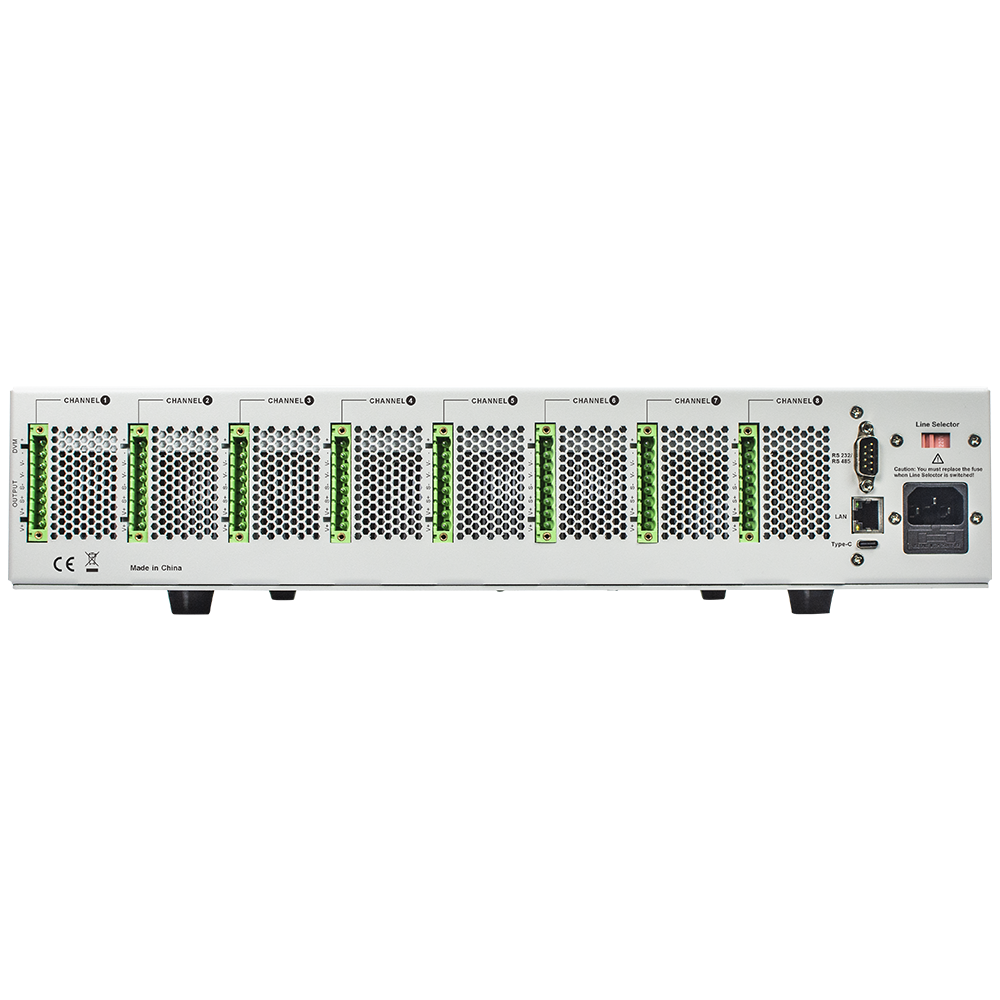

The built-in independent DVM measures voltage directly at the DUT through the rear-panel 8-pin pluggable terminal, reducing the impact of lead voltage drop and improving measurement accuracy and reliability.

The instrument must operate continuously at the specified temperature for more than 30 minutes to guarantee the following parameters
|
Model |
PSL3258-60 |
|
|
Total Output Power |
480 W |
|
|
Number of Channels |
8 CH |
|
|
Max. Power |
60 W / CH |
|
|
Voltage Range |
0~21V (per channel) |
|
|
Current Range |
0~5A (per channel) / ±5A |
|
|
Accuracy |
CV mode: ±(0.05% + 0.05% F.S + 20 ppm/°C) CC mode: ±(0.05% + 0.05% F.S + 50 ppm/°C) |
|
|
Load Regulation |
<0.05% (voltage); <0.1% (current) |
|
|
Noise and Ripple |
≤1 mVrms; ≤5 mVpp |
|
|
DVM Measurement |
Range |
-10~32 V |
|
Accuracy |
±(0.05% + 0.05% F.S + 20 ppm/°C) |
|
|
Measured Voltage Reading |
Range |
0~24 V |
|
Accuracy |
±(0.05% + 0.05% F.S + 20 ppm/°C) |
|
|
Measured Current Reading |
Range (5 A range) |
-5.5 A~5.5 A |
|
Accuracy |
±(0.05% + 0.05% F.S + 50 ppm/°C) |
|
|
Range (5 mA range) |
-5.5 mA~5.5 mA |
|
|
Accuracy |
±(0.05% + 0.05% F.S + 50 ppm/°C) |
|
|
Equipment Attributes |
||
|
AC Input |
90~264 VAC, 47~63 Hz |
|
|
Remote Interface |
Supports TCPIP communication |
|
|
Channel Parameters |
Supports dual channels, OUTPUT1/OUTPUT2 |
|
|
Communication Protocol |
Manual Entry of LAN Instrument |
|
|
Upgrade Service |
Supports USB flash drive upgrade or online upgrade via PC tool connected to the power supply |
|
